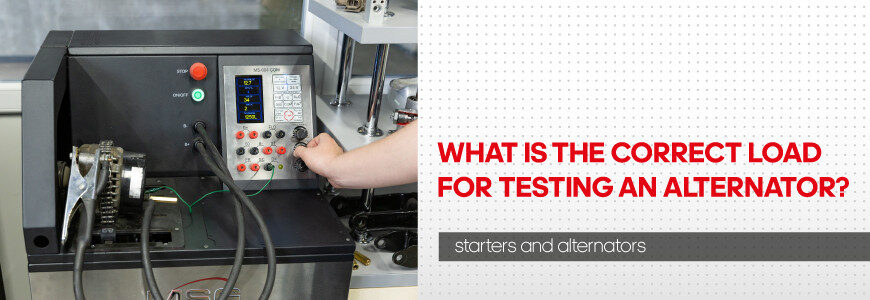

According to MSG Equipment, the only reliable way to assess an alternator is to test it on a bench that applies a load and reads the output and the AC ripple component. Because output current depends on rotor speed, the unit’s current-speed characteristic must be taken into account when setting the load.
Experience shows a load of 50–70 A is usually sufficient to assess condition, and if the AC component stays below 10% of the set load, the field winding and rectifier can be considered healthy.
MSG Equipment benches offer smooth speed and load adjustment: the MS002 COM tests 12/24 V units at up to 200/100 A, the MS004 COM 12 V units at up to 100 A, the MS006 at up to 50 A, while the MS005 is designed for comprehensive testing of 12/24/48 V alternators.
